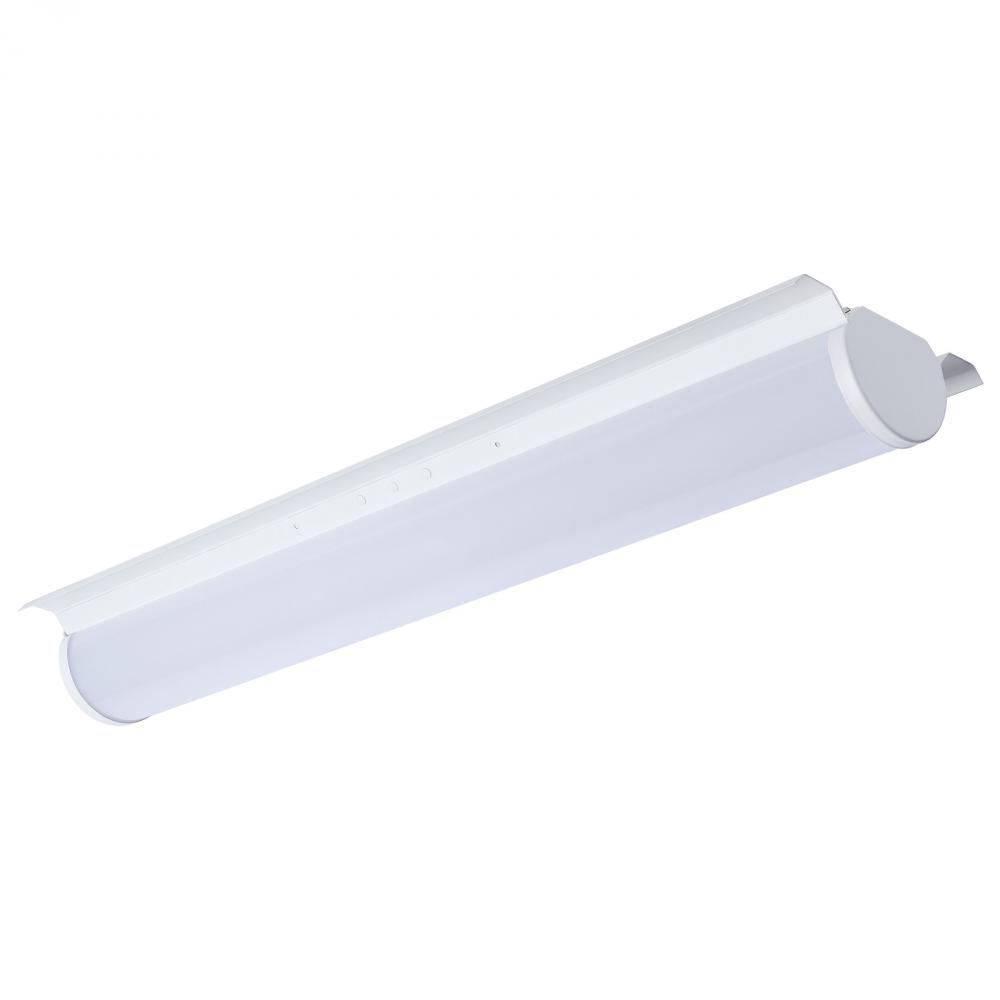

15/20/25 Watt LED 2 Foot Retrofit Strip Light; 35K/4K/5K CCT Selectable; 120-277 Volt (65/1030)
by Nuvo
15/20/25 Watt LED 2 Foot Retrofit Strip Light; 35K/4K/5K CCT Selectable; 120-277 Volt
Product Specification
Item #
65/1030
Dimensions
Height: 3.30"
Width: 5.89"
Additional product details
Vendor Item #
65/1030
Internal #
ADAF1
Category
Utility
Subcategory
Other Utility
Option
LED
, Prop 65
Category
Linear Strip
Sub Category
Strip Retrofit
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Neutral White to Natural Light
Dimmable
Yes-Dimmable
Each Height
4.13
Each Length
24.92
Each Width
6.69
Length
24.0
Lumens
1950L/2600L/3250L
Tariff Code
9405.11.6010
Warranty
5-Years
Amps
0.125-0.054/0.167-0.072/0.208-0.090A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
120
B_U_G_Rating
B1-U3-G2
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium; Standard; Standard
DLC Primary Use
Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires; Retrofit Kits for Direct Linear Ambient Luminaires
Each Cube
0.3985
Each Quantity
1
Efficacy
130.00 LPW
FCC Compliant
Yes
Feature 1
Field Selectable (3 wattages and 3 CCT)
Feature 2
Retrofit Existing 2.75"-5.25" Wide Strip Fixtures
Feature 3
Adjustable Installation Strips
Feature 4
Smooth Frosted Lens for Even Light Distribution
Feature 5
2-foot Steel Construction
Feature 6
0-10V Dimmable
Feature 7
Damp Location Rated
Feature 8
50,000 Hour Functional Life
Feature 9
5 Year Warranty
Finish Family
White
Flr Equiv
3 x 17W T8
Has Camera
No
Has Emergency Battery
No
Indoor Outdoor
Indoor
Installation Notes
Default CCT setting is 4000K; Default Wattage setting is 25W.
IOT Enabled
No
JA8 Compliant
No
Lens Finish
Glossy Frosted
Lens Material
Polycarbonate (PC)
Long Description
SATCO NUVO's LED Strip Retrofit Kit, 65-1030, is an energy-efficient upgrade for existing fluorescent fixtures. Designed with adjustable mounting strips to fit housings 2.75"–5.25" wide, this 2ft kit features field-selectable CCT and wattage,
Material
Steel
Mounting Height
1.0
Mounting Length
24.0
Mounting Procedure
Ceiling/Wall
Mounting Width
2.75
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
R9 Value
50
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's new LED Strip Retrofit Kits offer an energy-efficient solution for upgrading existing fluorescent strip fixtures. Designed with adjustable mounting strips to retrofit housings from 2.75" to 5.25" wide, these kits accommodate a wide
Safety Listing
cULus - Classified
SDS class
LED_Fixture
Short Description
2FT 25W LED STRIP RETROFIT
Sloped Ceiling Compatible
No
Temperature (CCT)
3500K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
<20%
Wattage Selectable
Yes
Weight Lb.
1.98
Manufactured By
Nuvo
Finish
Additional options that would change other selections
Recommended Items
Call for Price
BASE PRICE:
$
51
00
/
/ 1
($51.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 146 items available.
