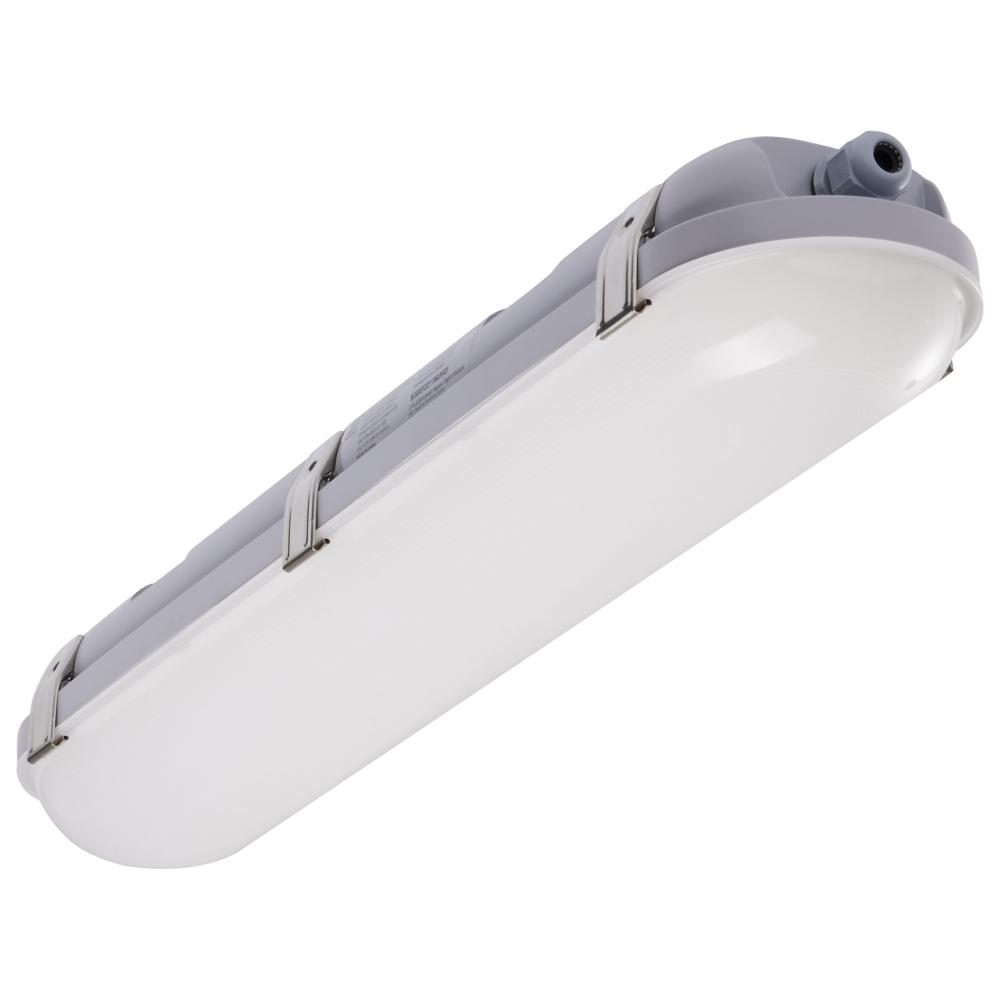

20 Watt LED 2 Foot Linear Vapor Proof Fixture; 3K/4K/5K CCT Selectable; 120-347 Volt (65/836)
by Nuvo
20 Watt LED 2 Foot Linear Vapor Proof Fixture; 3K/4K/5K CCT Selectable; 120-347 Volt
Product Specification
Item #
65/836
Dimensions
Height: 3.54"
Width: 4.84"
Additional product details
Vendor Item #
65/836
Internal #
ADAG4
Category
Flush Mounts
Subcategory
Other Flush Mounts
Option
LED
, Prop 65
Category
Linear
Sub Category
Vapor Proof
Style
Utility
Additional Info
90 Minute Battery Backup Runtime
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Soft White to Natural Light
Dimmable
Yes-Dimmable
Each Height
3.74
Each Length
25.2
Each Width
5.12
Length
23.62
Lumens
2164L-2505L
Tariff Code
9405.42.6000
Warranty
5-Years
Amps
0.167-0.058A
ANSI Base
Integrated
BAA Compliant
No
Battery Chemistry
LiFePO4
Beam Angle
120
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 SBCS Listed
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Thailand
CRI
80+
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming
DLC Classification
Standard
DLC Primary Use
Direct Linear Ambient Luminaires
Each Cube
0.2793
Each Quantity
1
Efficacy
108.20/116.73/125.25 LPW
FCC Compliant
Yes
Feature 1
3 CCT Selectable
Feature 2
2 foot
Feature 3
Vapor Proof with Emergency Backup
Feature 4
120-347 Voltage
Feature 5
Durable, Gray Polycarbonate Material
Feature 6
IP65 & IK08 Rated
Feature 7
Wet Location Rated
Feature 8
5 Year Warranty
Feature 9
50,000 Hour Functional Life
Finish Family
Gray
Fixture shape
Linear
Flicker Free
No
Has Camera
No
Has Driver
Yes
Has Emergency Battery
Yes
HID Equiv
50W
Impact Rating (IK)
IK08
Incandescent Equivalent
125W
Includes
Mounting Hardware
Indoor Outdoor
Indoor;Outdoor
IOT Enabled
No
IP Rating
IP65
Lens Finish
Opaque
Lens Material
Polycarbonate (PC)
Long Description
The SATCO NUVO 65-836 2 foot Vapor Proof LED fixture combines durability with critical performance capability. Operating at 20 watts and offering 3 CCT selectable options, it delivers dependable illumination with flexibility. An integrated emergency batter
Material
Polycarbonate (PC)
Mounting Procedure
Ceiling/Wall
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Kraft Box
Power Factor
>0.96
Quantity In Pack
1
Rated For Vapor Tight Fixture
Yes
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
The SATCO NUVO Vapor Proof LED fixture series delivers durability, versatility, and performance for demanding environments. All models feature 3 CCT selectable options, operate on a wide 120-347V range, and are built with rugged IP65 and IK08 construction.
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
2' LED EM LINEAR VAPOR PROOF
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
Yes
Title 24 Compliant
No
Total Harmonic Distortion
10.30%
Wattage Selectable
No
Weight Lb.
3.09
Manufactured By
Nuvo
Finish
Additional options that would change other selections
Recommended Items
Call for Price
BASE PRICE:
$
126
00
/
/ 1
($126.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 330 items available.
