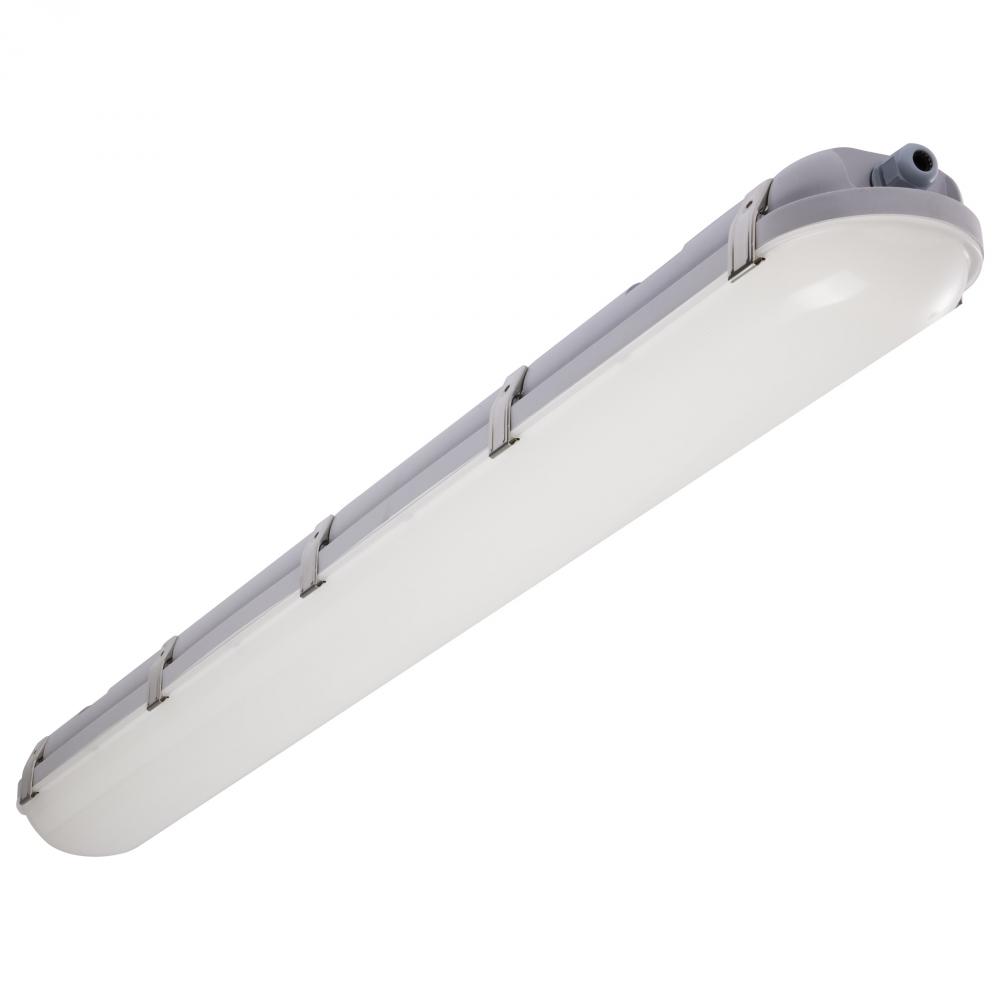

40/50/60 Watt LED 4 Foot Linear Vapor Proof Fixture; Emergency Battery; Integrated Microwave Sensor; (65/839)
by Nuvo
40/50/60 Watt LED 4 Foot Linear Vapor Proof Fixture; Emergency Battery; Integrated Microwave Sensor; 3K/4K/5K CCT Selectable; 120-347 Range Voltage
Product Specification
Item #
65/839
Dimensions
Height: 3.54"
Width: 4.84"
Additional product details
Vendor Item #
65/839
Internal #
ADAG7
Category
Flush Mounts
Subcategory
Other Flush Mounts
Option
LED
Category
Linear
Sub Category
Vapor Proof
Style
Utility
Additional Info
90 Minute Battery Backup Runtime
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Soft White to Natural Light
Dimmable
Yes-Dimmable
Each Height
3.74
Each Length
48.82
Each Width
5.12
Length
47.24
Lumens
5360L-7991L
Tariff Code
9405.42.6000
Warranty
5-Years
Amps
0.333-0.115/0.417-0.144/0.500-0.173A
ANSI Base
Integrated
BAA Compliant
No
Battery Chemistry
LiFePO4
Beam Angle
120
CCT Selectable
Yes
CEC
T20 SBCS Listed
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Thailand
CRI
80+
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V; Integrated Sensor
DLC Classification
Standard; Standard
DLC Primary Use
Low-Bay Luminaires for Commercial and Industrial Buildings; Direct Linear Ambient LuminairesDirect Linear Ambient Luminaires
Each Cube
0.541
Each Quantity
1
Efficacy
134.00/133.51/133.18 LPW
FCC Compliant
Yes
Feature 1
Field Selectable - 3 CCT and 3 Wattage
Feature 2
4 foot
Feature 3
Vapor Proof with Emergency Backup & Microwave Sensor Model
Feature 4
120-347 Voltage
Feature 5
Durable, Gray Polycarbonate Material
Feature 6
IP65 & IK08 Rated
Feature 7
Wet Location Rated
Feature 8
5 Year Warranty
Feature 9
50,000 Hour Functional Life
Finish Family
Gray
Fixture shape
Linear
Flicker Free
No
Has Camera
No
Has Driver
Yes
Has Emergency Battery
Yes
HID Equiv
125W-150W
Impact Rating (IK)
IK08
Incandescent Equivalent
300W-400W
Includes
Mounting Hardware
Indoor Outdoor
Indoor and Outdoor
IOT Enabled
No
IP Rating
IP65
Lens Finish
Opaque
Lens Material
Polycarbonate (PC)
Long Description
The SATCO NUVO 65-839 4 foot Vapor Proof LED fixture combines maximum flexibility with advanced functionality. It features selectable wattages of 40W, 50W, or 60W and 3 CCT selectable options for customizable illumination. An integrated microwave sensor pr
Material
Polycarbonate (PC)
Mounting Procedure
Ceiling/Wall
NSF Approved
No
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Kraft Box
Photocell
Integrated Microwave Sensor
Power Factor
>0.96
Quantity In Pack
1
Rated For Vapor Tight Fixture
Yes
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
The SATCO NUVO Vapor Proof LED fixture series delivers durability, versatility, and performance for demanding environments. All models feature 3 CCT selectable options, operate on a wide 120-347V range, and are built with rugged IP65 and IK08 construction.
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Sensor Type
Microwave
Short Description
4' VAPOR PROOF W/EM & SENSOR
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
Yes
Title 24 Compliant
No
Total Harmonic Distortion
17.60%
Wattage Selectable
Yes
Weight Lb.
5.29
Manufactured By
Nuvo
Finish
