Raymond 6” LED Fire-Rated Ultra-Thin Recessed Downlight, 5CCT Selectable
Image may not reflect selected features

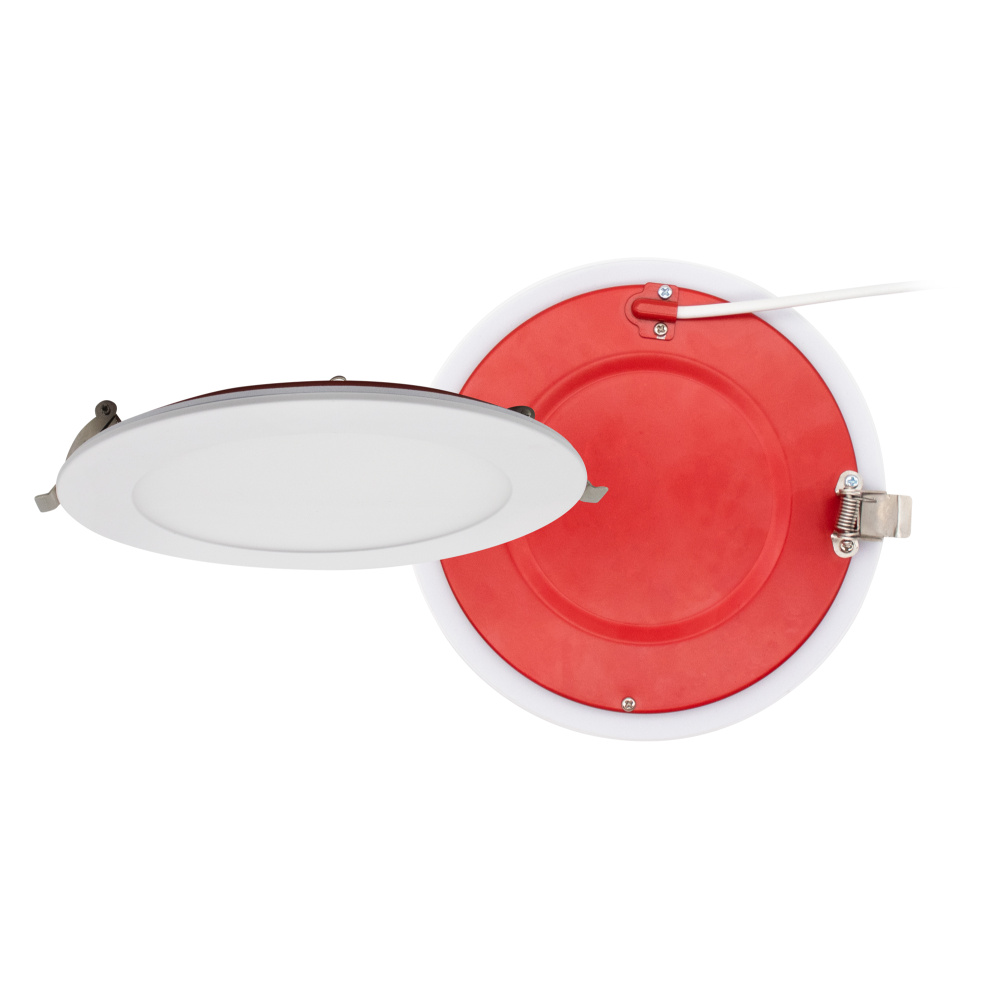

Raymond 6” LED Fire-Rated Ultra-Thin Recessed Downlight, 5CCT Selectable (8544WH-90-5CCT) by RP Lighting Plus Fans
The Raymond is a 6-inch Fire-Rated Ultra-Thin LED Recessed Downlight designed to meet rigorous fire safety codes, offering a sleek, modern, and versatile lighting solution for both residential and commercial applications. This downlight features edge-lit technology and a 5CCT selectable option, allowing you to choose from a variety of color temperatures, making it adaptable to different environments. Its ultra-thin profile and fire rating make it an excellent choice for projects where space and safety are top priorities. The Raymond features a 2-hour fire rating (tested to comply with UL 263, ASTM E119, and CAN ULC S101), ensuring the light meets the necessary fire-safety standards for recessed ceiling applications. Reinforced, heat-resistant steel casing for added durability and protection and the frosted acrylic lens diffuses light to reduce glare and provides even illumination across the room.
Product Specification
Item #
8544WH-90-5CCT
Dimensions
Height: 1.50"
Width: 6.00"
Length: 6.00"
Additional product details
Vendor Item #
8544WH-90-5CCT
Internal #
YV3P05VG7R
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
Energy Star , Title 24 , Dry Rated
Finish
White
Option
Energy Star , Title 24
Voltage
120 V
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Type
LED
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Steel, Acrylic
Order Minimum
1
Ship Carton Height
1.75
Ship Carton Length
8
Ship Carton Width
8
Ship Weight
4.41
Sold By
Each
Vendor Ship Method
UPS, FedEx
Weight
2.16
Bulb CRI
90
Bulb Included
Yes
Cartons Per Unit
1
Delivered Lumens
1046
Energy Star
Yes
Location Rating
Dry Rated
Max Wattage
15 W
Safety Rating
ETL Approved
Title 24
Yes
Manufactured By
RP Lighting Plus Fans


Other Details:
  • 1046 Lumens
  • 15W Integrated LED bulb (included)
  • Constructed of Steel and Acrylic
Call for Price
Qty:
BASE PRICE:
$
46
00
/ / 1
($46.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer availability unknown.
