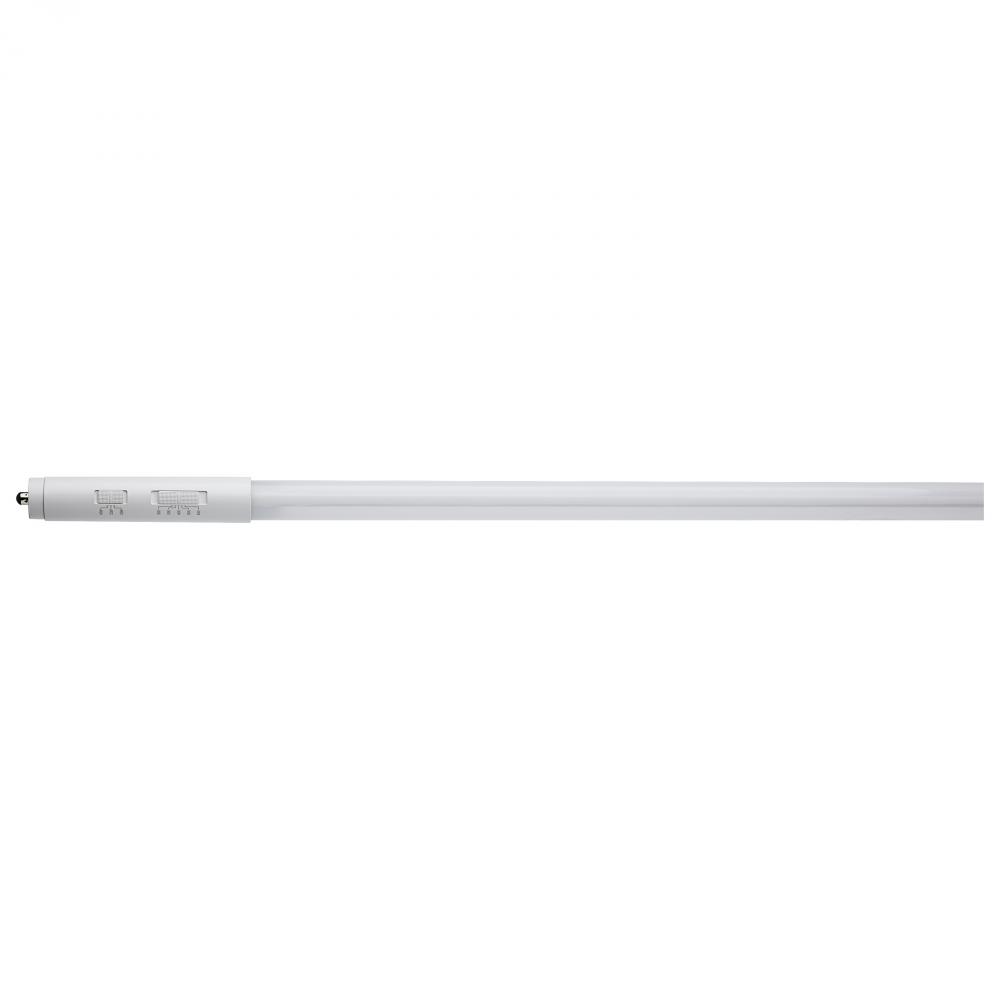

24/32/40 Watt T8 LED; 30K/35K/40K/50K/65K CCT Selectable; 8 Foot; Ballast Bypass; Fa8 Base; 120-277 (S11758)
by Satco Products Inc.
24/32/40 Watt T8 LED; 30K/35K/40K/50K/65K CCT Selectable; 8 Foot; Ballast Bypass; Fa8 Base; 120-277 Volt
Product Specification
Item #
S11758
Dimensions
Width: 1.00"
Additional product details
Vendor Item #
S11758
Internal #
X9UZP
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
LED T8
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
3000K/3500K/4000K/5000K/6500K
Bulb Shape
T8
Diameter
1
EA Length
95.87
Harmonized Codes
8539.52.0051
Length
93.88
Lumens
3500L/4400L/5500L
Shap Carton Width
7.56
Ship Carton Height
3.86
Ship Weight
12.13
Warranty
5-Years
Weight
0.88
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
210
Bulb ANSI Base
Fa8
Bulb Base
Single Pin
Bulb Finish
White
Carton Cubic Feet
1.619
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Soft White to Daylight
Country Of Origin
China
CRI
80+
DLC Approved
Yes
DLC Classification
Standard
DLC ID
S-3Y6HM9
DLC Primary Use
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy
145.83/137.50/137.50 LPW
Enclosed Fixture Use
Yes
FCC Compliant
Yes
Feature 1
24W/32W/40W Wattage Selectable
Feature 10
Ideal for use in Warehouses, Box Stores, Grocery Stores, Gymnasiums
Feature 2
3000K/3500K/4000K/5000K/6500K CCT Selectable
Feature 3
120V-277V Range Voltage
Feature 4
PET Coated Glass Tube; NSF Rated
Feature 5
Damp Location Rated
Feature 6
Double Ended Wiring
Feature 7
Optional R17d Base Caps Included
Feature 8
Compatible with SATCO S8002 10W Emergency Driver
Feature 9
Suitable for Open and Enclosed Fixtures
Flicker Free
No
Flourescent Equivalent
59W/86W/96W
Has Camera
No
Has Emergency Battery
No
Housing Color
White
Includes
(1) Set R17d & Fa8 Endcaps
IOT Enabled
No
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Double Ended
Lamp Filament
LED
Location Rating
Damp
Long Description
SATCO NUVO's S11758 T8 8' ballast bypass lamp is field selectable, offering three wattage options and five CCT options in one convenient unit. Built for use in Fa8 lamp holders, it also comes with R17d adapter caps, making it versatile for use in a
Material
Glass
Nominal Length
96
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
10
Pack Type
Egg Crate
Power Factor
0.9
Quantity In Pack
10
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's T8 8' ballast bypass lamp is field selectable, offering three wattage options and five CCT options in one convenient unit. Built for use in Fa8 lamp holders, it also comes with R17d adapter caps, making it versatile for use in a variet
SDS class
LED_Lamp
Shatter Proof Text
PET Coated
Short Description
40T8L/96/8CCT5/B/CF/U
Specification Notes
Not for use in fully enclosed vapor tight fixtures
Surge Protection
Built-in surge protection - 1KV
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
<25%
Wattage Selectable
Yes
Watts
24W/32W/40W
Manufactured By
Satco Products Inc.
Finish Family
Additional options that would change other selections
Call for Price
BASE PRICE:
$
38
00
/
/ 1
($38.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 11560 items available.
