3 Watt; ALR12 LED; 3000K; Double Contact Base; 12 Volt
Image may not reflect selected features
/vendors/27/large/S29005.jpg
additional image
additional image
additional image
additional image
additional image

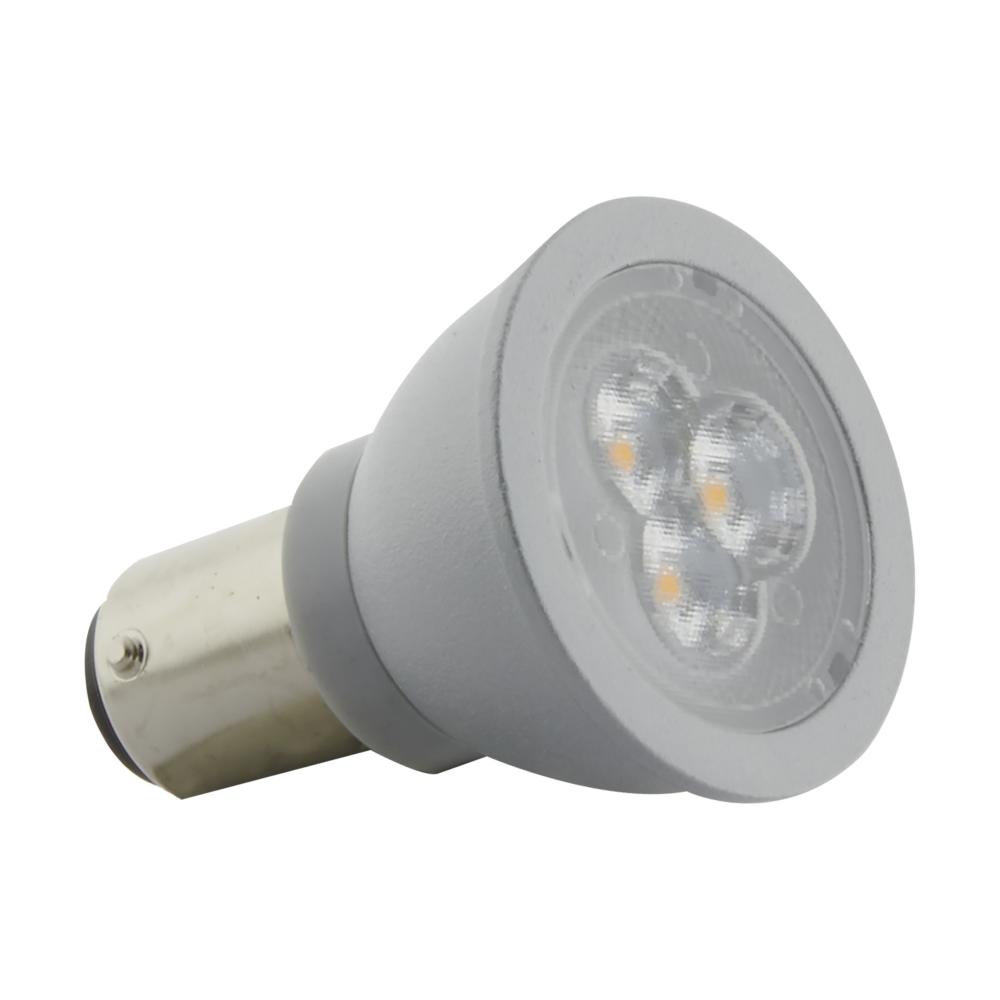

3 Watt; ALR12 LED; 3000K; Double Contact Base; 12 Volt (S29005) by Satco Products Inc.
3 Watt; ALR12 LED; 3000K; Double Contact Base; 12 Volt
Product Specification
Item #
S29005
Dimensions
Width: 1.38"
Additional product details
Vendor Item #
S29005
Internal #
LRMDX
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
Gray
Style
Traditional
Lumens
450-800
Kelvin
2501-3000
Category
LED
Sub-Category
Mini and Pin-Based LED
Volts
12V
Bulb Dimmable
Non-Dimmable
Bulb Hours
15000
Bulb Kelvin
3000K
Bulb Shape
ALR12
Diameter
1.38
EA Length
1.47
Harmonized Codes
8539.52.0091
Length
1.77
Lumens
220L
Shap Carton Width
1.47
Ship Carton Height
1.89
Ship Weight
0.07000000000000001
Warranty
2-Years
Weight
0.05
BAA Compliant
No
Beam Spread
31
Bulb ANSI Base
BA15d
Bulb Base
Bayonet Double Contact
Bulb Finish
Gray
Burning Position
Universal
Carton Cubic Feet
0.0024
Cartons Per Unit
1
CBCP
300
CCT Selectable
No
CEC Terse
Lawful for sale in California
Color Temprature
Warm White
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
73.33 LPW
Enclosed Fixture Use
No
Enclosure Rating
Open Rated Lamp
FCC Compliant
Yes
Feature 1
MOL: 1.77 inches, MOD: 1.38 inches
Feature 2
Gray Finish
Feature 3
Material: Aluminum and Polycarbonate
Feature 4
3000K Warm White Light
Feature 5
220 lumens
Feature 6
Damp location rated for indoor use
Feature 7
Bayonet Double Contact Base
Feature 8
Rated for 15,000 hours
Feature 9
2-Year Limited Warranty
Has Camera
No
Has Emergency Battery
No
HID Equivalent
20W
Housing Color
Silver
Incandescent Equivalent
20W
Indoor Outdoor
Indoor
IOT Enabled
No
JA8 Compliant
No
Lamp Filament
LED
Lens
Yes
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Location Rating
Damp
Long Description
Satco's S29005 3-watt ALR12 LED elevator and display lamp is your best choice to reduce heat build-up from older halogen technologies while reducing energy and maintenance costs. The familiar look and performance of this lamp makes it perfect for eleva
Material
Aluminum / Polycarbonate (PC)
Operating Frequency
60Hz
Operating Temp
-25C (-13F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Photocell
No
Power Factor
>0.5
Quantity In Pack
1
R9 Value
12
RoHS Compliant
Yes
Romance Copy
Satco's 3-watt ALR12 LED elevator and display lamp is your best choice to reduce heat build-up from older halogen technologies while reducing energy and maintenance costs. The familiar look and performance of this lamp makes it perfect for elevators, l
SDS class
LED_Lamp
Short Description
3WLED/GBF/ELEVATOR/12V AC/DC
Style
Transitional
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Wattage Selectable
No
Watts
3W
Manufactured By
Satco Products Inc.
