3 Watt T5 LED; Clear Finish; Bi Pin G4 Base; 3000K; 12 Volt
Image may not reflect selected features

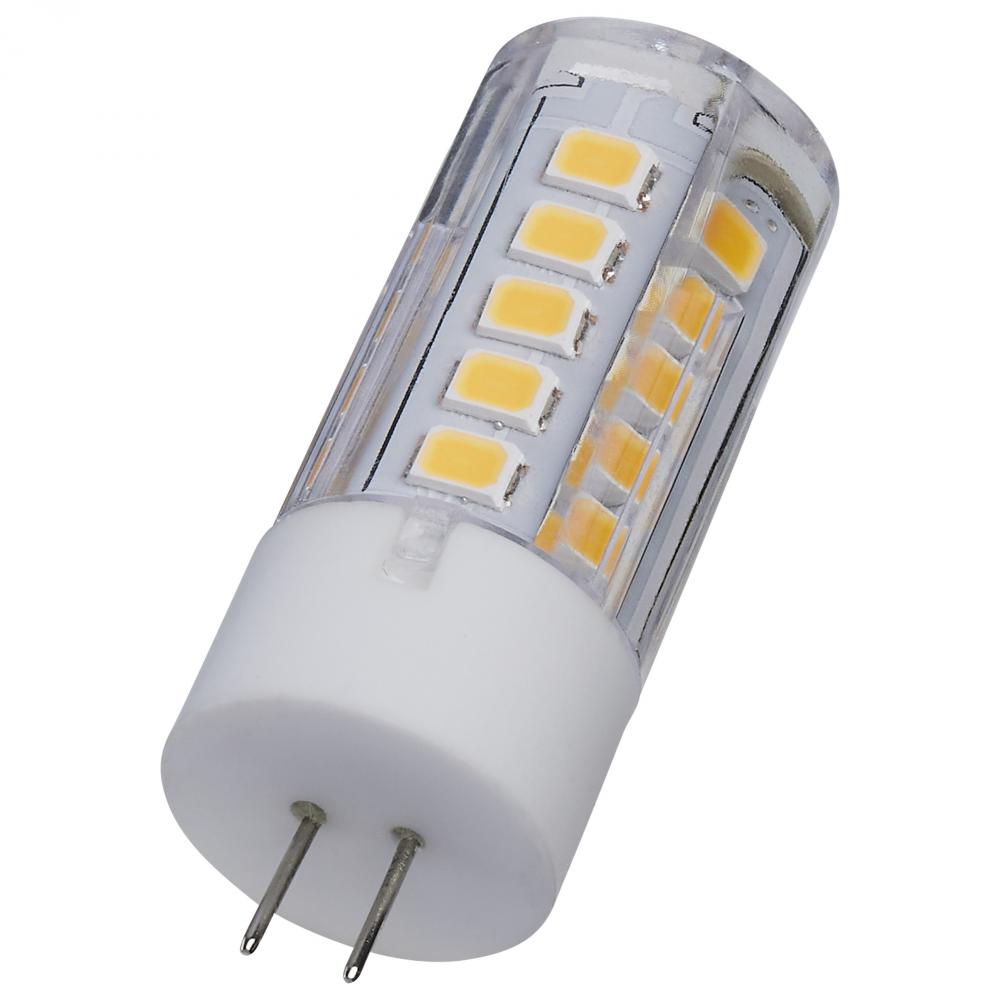

3 Watt T5 LED; Clear Finish; Bi Pin G4 Base; 3000K; 12 Volt (S12311) by Satco Products Inc.
3 Watt T5 LED; Clear Finish; Bi Pin G4 Base; 3000K; 12 Volt
Product Specification
Item #
S12311
Dimensions
Width: 0.63"
Additional product details
Vendor Item #
S12311
Internal #
X6V8X
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
Mini and Pin-Based LED
Volts
12V
Bulb Dimmable
Yes-Dimmable
Bulb Hours
25000
Bulb Kelvin
3000K
Bulb Shape
T5
Diameter
0.63
EA Length
1.5
Harmonized Codes
8539.52.0010
Length
1.69
Lumens
330L
Shap Carton Width
1.5
Ship Carton Height
2.95
Ship Weight
0.035
Warranty
5-Years
Weight
0.02
BAA Compliant
No
Beam Spread
300
Bulb ANSI Base
G4
Bulb Base
Bi Pin G4
Bulb Finish
Clear
Candle Power
30
Carton Cubic Feet
0.0038
Cartons Per Unit
1
CBCP
30
CCT Selectable
No
CEC Terse
Lawful for sale in California
Color Temprature
Soft White
Country Of Origin
China
CRI
80+
Dimmable Down To
100 to 10 percent
Dimmable Function
Check the transformer/driver MFG for dimmer compatibility
Dimming Type
Phase cut
DLC Approved
No
Efficacy
110.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
Low 12-volt Operation
Feature 2
300 degree Omni-Directional Light
Feature 3
3000K CCT
Feature 4
Damp location rated
Feature 5
T5, Bi-Pin G4 Base
Feature 6
Dimmable
Feature 7
25,000 Life Hours
Flicker Free
No
Has Camera
No
Has Emergency Battery
No
Housing Color
White
Incandescent Equivalent
25W
Indoor Outdoor
Indoor
Installation Notes
Not for use in vapor tight fixtures.
IOT Enabled
No
JA8 Compliant
No
Lamp Filament
LED
Lens Material
Polycarbonate (PC)
Location Rating
Damp
Long Description
Illuminate your surroundings while maximizing energy efficiency and cost-effectiveness with SATCO NUVO's S12311 3-watt, G4-base, Halogen replacement lamp. Engineered for low 12-volt operation and featuring 300-degree omni-directional lighting, this lam
Material
Ceramic / Polycarbonate (PC)
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.7
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Illuminate your surroundings while maximizing energy efficiency and cost-effectiveness with SATCO NUVO's G4 and GY6.35 Halogen replacement lamps. Available in an array of shapes, bases, and finishes, these lamps are equipped with LED technology, ensuri
SDS class
LED_Lamp
Short Description
3W/LED/G4/CL/830/12V
Style
Utility
Surge Protection
Built-in surge protection - 1.5KV
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
70%
Wattage Selectable
No
Watts
3W
Manufactured By
Satco Products Inc.
