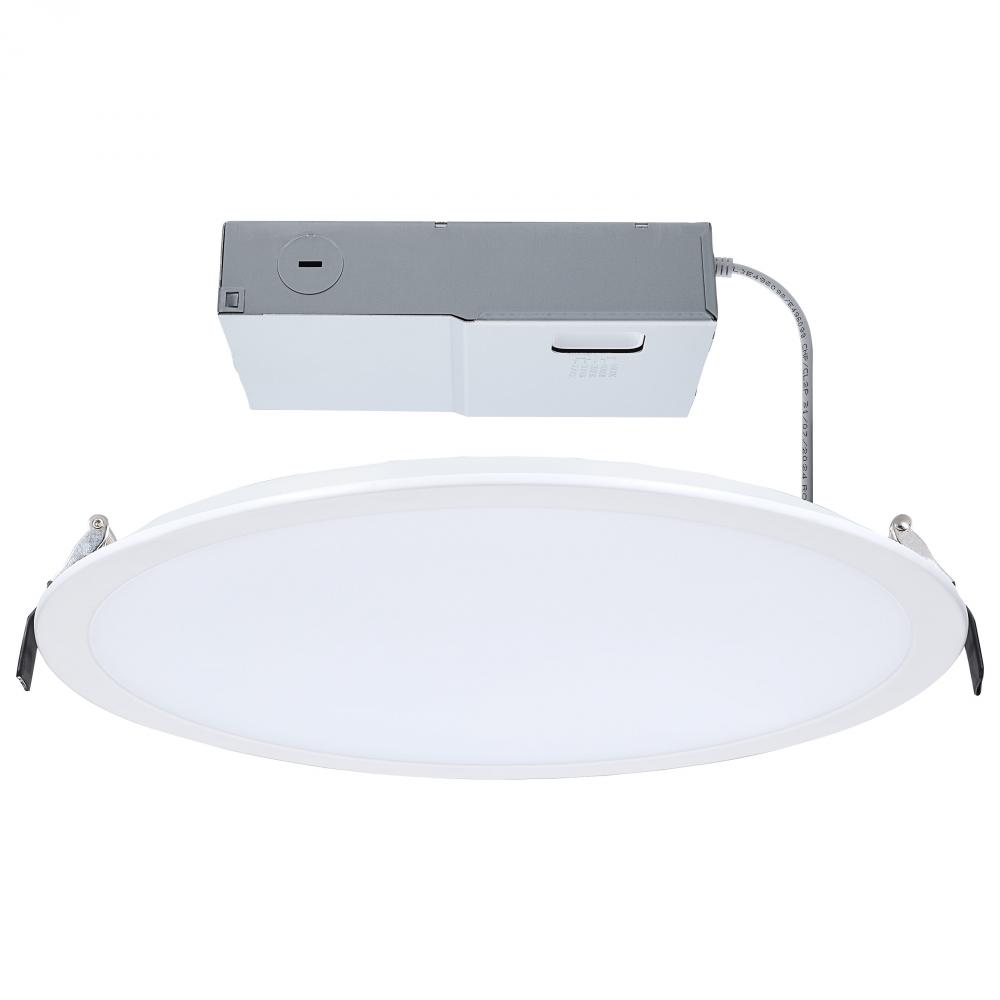

38 Watt; 12 Inch LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dual Dimming; Flat Face;
Image may not reflect selected features
/vendors/27/large/S11849.jpg
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
38 Watt; 12 Inch LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dual Dimming; Flat Face; (S11849) by Satco Products Inc.
38 Watt; 12 Inch LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dual Dimming; Flat Face; Round; White Finish
Product Specification
Item #
S11849
Dimensions
Height: 2.36"
Width: 13.03"
Additional product details
Vendor Item #
S11849
Internal #
X9U1E
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Option
LED , Prop 65
Category
Recessed
Sub Category
Direct Wire
Bulb Hours
50000
Bulb Kelvin
Warm White to Natural Light
Bulb Shape
Integrated LED
Bulb Type
LED
Diameter
13.03
Dimmable
Yes-Dimmable
Harmonized Codes
9405.11.6010
Lumens
4000L
Ship Carton Height
13.15
Ship Carton Length
13.7
Ship Carton Width
2.95
Warranty
5-Years
Air Tight
Yes
Amps
0.360A
ANSI Base
Integrated
BAA Compliant
No
Beam Spread
110
CA Prop-65
Lead
Can Size
12 in.
Carton Cubic Feet
0.3076
Cartons Per Unit
1
CCT Selectable
Yes
CEC
California T24 2016 - 2025 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Direct Wired
Country Of Origin
Cambodia
CRI
90+
Dimmable Down To
100 to 10 percent
Dimmable Function
Triac at 120V / 0-10V at 120-277V
Dimming Type
Dual Dimming
Efficacy
105.26 LPW
FCC Compliant
Yes
Feature 1
12-inch Diameter
Feature 10
FT6 Cable Included for Commercial Plenums
Feature 2
Dual Dimming
Feature 3
4000 Lumens
Feature 4
38W
Feature 5
Wet Location Rated
Feature 6
AT Rated
Feature 7
Suitable for Bathrooms
Feature 8
90 CRI
Feature 9
5 CCT Selectable
Finish Family
White
Fixture shape
Round
Has Camera
No
Has Driver
Yes
Has Emergency Battery
No
IC Rated
Yes
Incandescent Equivalent
200W
Indoor Outdoor
Indoor
IOT Enabled
No
JA8 Compliant
Yes
Lens Finish
Matte Frosted
Lens Material
Polycarbonate (PC)
Long Description
SATCO NUVO's S11849 LED Slimfit Downlights offer exceptional versatility and performance, and these models feature a wide 12-inch diameter to illuminate larger spaces. ColorQuick Technology allows for the selection from five CCT choices at installation
Material
Steel
Mounting Diameter
12
Mounting Height
3.94
Operating Frequency
50/60Hz
Operating Temprature
-20C (-4F) to +40C (+104F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
50
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's LED Slimfit Downlights offer exceptional versatility and performance, and these models feature a wide diameter to illuminate larger spaces. ColorQuick Technology allows for the selection from five CCT choices at installation to create the
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
38WLED/DW/12/CCT/RND/FL/DD
Sloped Ceiling Compatible
No
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
Yes
Total Harmonic Distortion
<20%
Trim Material
Steel
Wattage Selectable
No
Weight Lb.
3
Manufactured By
Satco Products Inc.
Finish
Additional options that would change other selections
