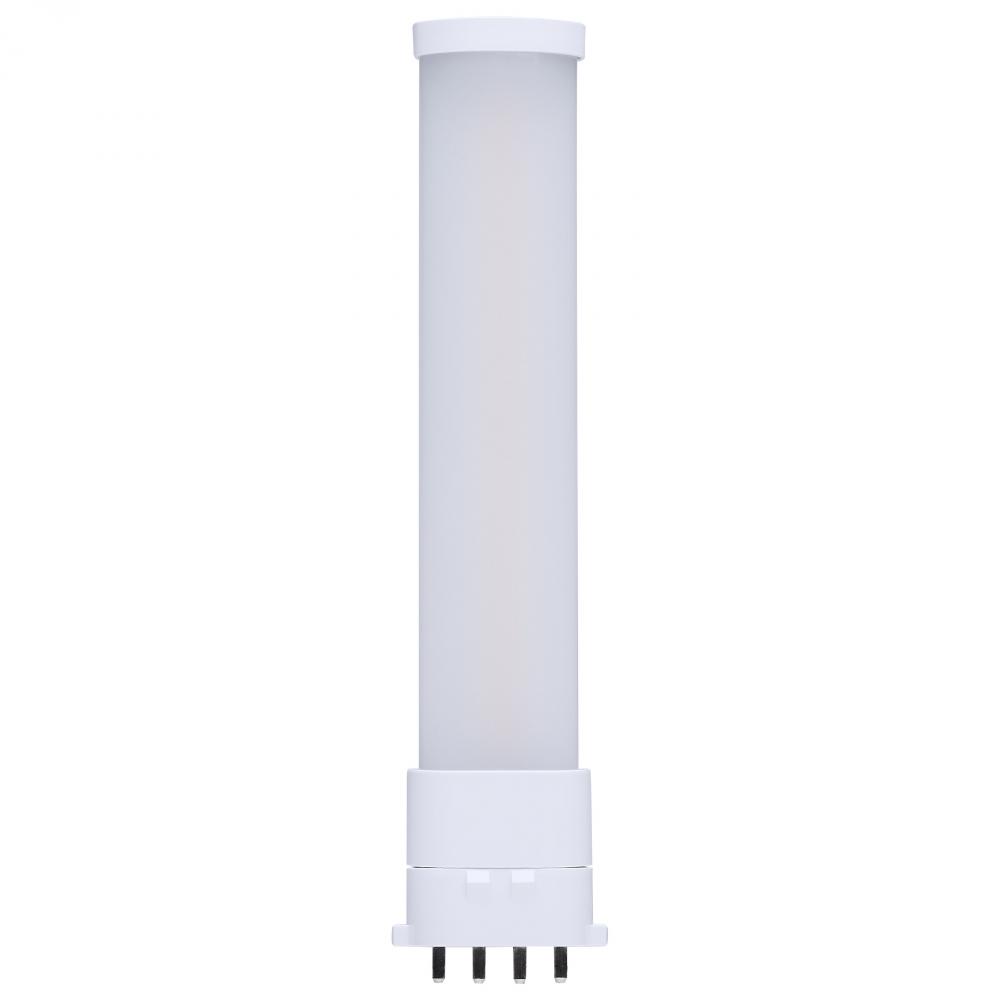

5.5 Watt; 2GX7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt (S11556)
by Satco Products Inc.
5.5 Watt; 2GX7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt
Product Specification
Item #
S11556
Dimensions
Width: 1.26"
Additional product details
Vendor Item #
S11556
Internal #
X6X89
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
LED CFL Replacements Pin Based
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
2700K/3000K/3500K/4000K
Bulb Shape
PL
Diameter
1.26
EA Length
1.54
Harmonized Codes
8539.52.0091
Length
6.51
Lumens
600L/620L/630L/650L
Shap Carton Width
0.91
Ship Carton Height
6.61
Ship Weight
0.1
Warranty
5-Years
Weight
0.08
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
120
Bulb ANSI Base
2GX7
Bulb Base
2GX7 (4-Pin)
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.0054
Cartons Per Unit
1
CCT Selectable
Yes
CEC Terse
Lawful for sale in California
Color Temprature
Warm to Cool White
Country Of Origin
Thailand
CRI
80+
DLC Approved
No
Efficacy
109.09/112.73/114.55/118.18 LPW
Enclosed Fixture Use
No
Enclosure Rating
Open Rated Lamp
FCC Compliant
Yes
Feature 1
4 CCT Selectable
Feature 2
Type B Ballast Bypass
Feature 3
120 Degree Beam Spread
Feature 4
2GX7 Lamp Base
Feature 5
Damp location rated
Feature 6
50,000 Hour Functional Life
Feature 7
5 Year Warranty
Feature 8
Single-Sided Illumination
Flourescent Equivalent
13W
Has Camera
No
Has Emergency Battery
No
Housing Color
White
Indoor Outdoor
Indoor
IOT Enabled
No
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Location Rating
Damp
Long Description
The SATCO NUVO S11556 5.5W Type B LED lamp provides an efficient replacement for 13W CFL lamps with a G23 base. With its ballast bypass design, this lamp connects directly to the electrical system, eliminating the need for a traditional ballast. Featuring
Material
Polycarbonate (PC)
NSF Approved
No
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Upgrade your lighting with SATCO NUVO's energy-efficient Type B ballast bypass LED replacement lamps. These innovative lamps are available in multiple base options to suit your needs. The 3.5W model for 5/7/9W CFL lamps with a 2G7 base and the 5.5W mod
SDS class
LED_Lamp
Short Description
5.5W/LED/CFL/CCT/2GX7/BP
Style
Transitional
Surge Protection
Built-in-surge protection - 0.5KV
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
20%
Wattage Selectable
No
Watts
5.5W
Manufactured By
Satco Products Inc.
Finish Family
Additional options that would change other selections
Call for Price
BASE PRICE:
$
11
00
/
/ 1
($11.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 1913 items available.
