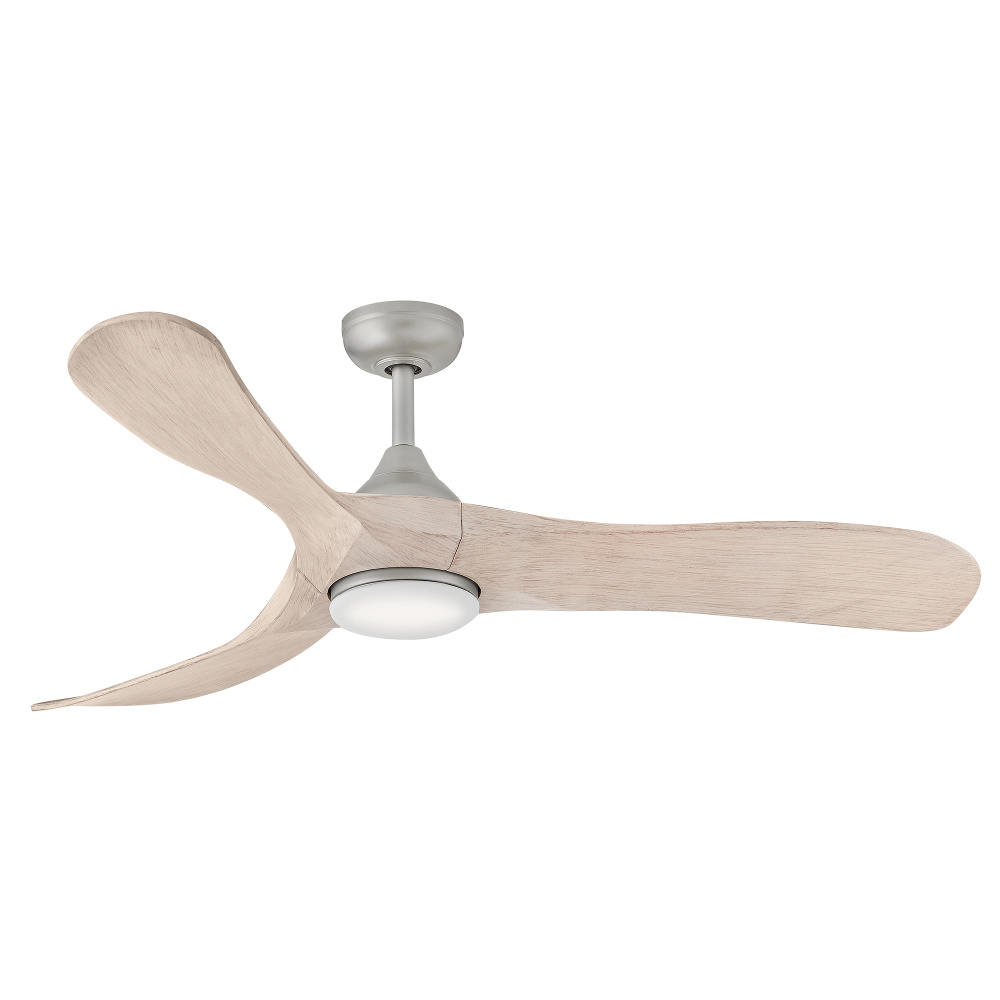

Swell Illuminated 56" LED Smart Fan (903856FBN-LDD)
by Hinkley
Sophisticated and distinct, Swell Illuminated perfectly sets the scene in contemporary spaces without sacrificing functionality – featuring integrated LEDs complemented by a variety of classic finish combinations. A versatile, damp-rated design makes Swell perfect for both interior and outdoor settings. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley app.
Downloads
Product Specification
Item #
903856FBN-LDD
Dimensions
Height: 15.00"
Width: 56.00"
Length: 56.00"
Additional product details
Vendor Item #
903856FBN-LDD
Internal #
A0C8A
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Nickel
Style
Modern
Option
Title 24
, Damp Rated
, LED
Voltage
100-120
Glass Finish or Style
Etched
, Opal
Lumens
1101-1600
Kelvin
2501-3000
Location Rating
Damp Rated
Smart Home
Yes
Category
Fan
Finish
Brushed Nickel
Style
Modern
Option
LED
, Title 24
Family
Swell Illuminated
Glass
Etched Opal
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow Efficiency
7708
Amperage
0.48
Blade Finish
Bleached Ashwood
Blade Pitch
14
Blade Span
56
Bulb Dimmable
Yes
Bulb Hours
50000
Bulb Type
LED
Canopy
6 Dia x 2.25 D
Introduction Date
01/01/2026
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
1320
Material
Steel
Motor Type
DC
Ship Carton Height
12.09
Ship Carton Length
37.91
Ship Carton Width
15.39
Ship Weight
26.67
Vendor Ship Method
Parcel
Weight
28.6
Airflow Avg
5227
AMPS Avg
0.27
Avg Airflow Efficiency
224
Avg Energy Use Watts
23
Blade Material
Wood
Blade Sweep
56
Blade To Ceiling Height
10.75
Blades Reversible
No
Bulb CRI
90
Bulb Included
Yes
Control Type
HIRO Control - 6 Speed Reversing
Country of Origin
Taiwan
Dimmer Type
CL Type (SSL7A)
Efficiency High
223
Energy Cost Avg
7
Energy Cost High
9.7
Energy Use High
34.6
Fan Control
Yes
Flush Mount Fan
No
Glass Groups
White
Incandescent Equivalency
100 W
Install Sloped Ceiling
Yes
LED
Yes
Light Kit Adaptable
Yes
Light Kit Included Removeable
Yes
Light Source
Integrated LED
Location Rating
Damp Rated
Max Wattage
16 W
Motor Fan Speed
6
Motor Name
DCS-30NS
Number of Blades
3
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
104
RPMS High
157
Safety Rating
ETL Approved
Slope Degree
20
Title 24
Yes
Uplight 2
No
WIFI Control Included
Yes
Manufactured By
Hinkley
Other Details:
- An optional light kit is availble
- Bold silhouette with dramatic details creates a modern statement
- Can be hung on a sloped ceiling
- Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app
- Damp rated fans are ideal for fully covered outdoor areas, bathrooms, garages, and sunrooms
- Energy-efficient integrated LED - safer for the environment and low maintenance
- Fan Control included, 6 Spd HIRO:R
- Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting; use as a wall control or portable remote
- FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling
- Fans should be installed at a minimum of 7 feet from the floor
- LED components carry a 5-year limited warranty
- Light kit cover included
- Motor carries a lifetime warranty
- This item includes a 6" down rod (other lengths of down rods are available)
- WiFi Enabled Smart Fan is compatible with your home’s WiFi network
