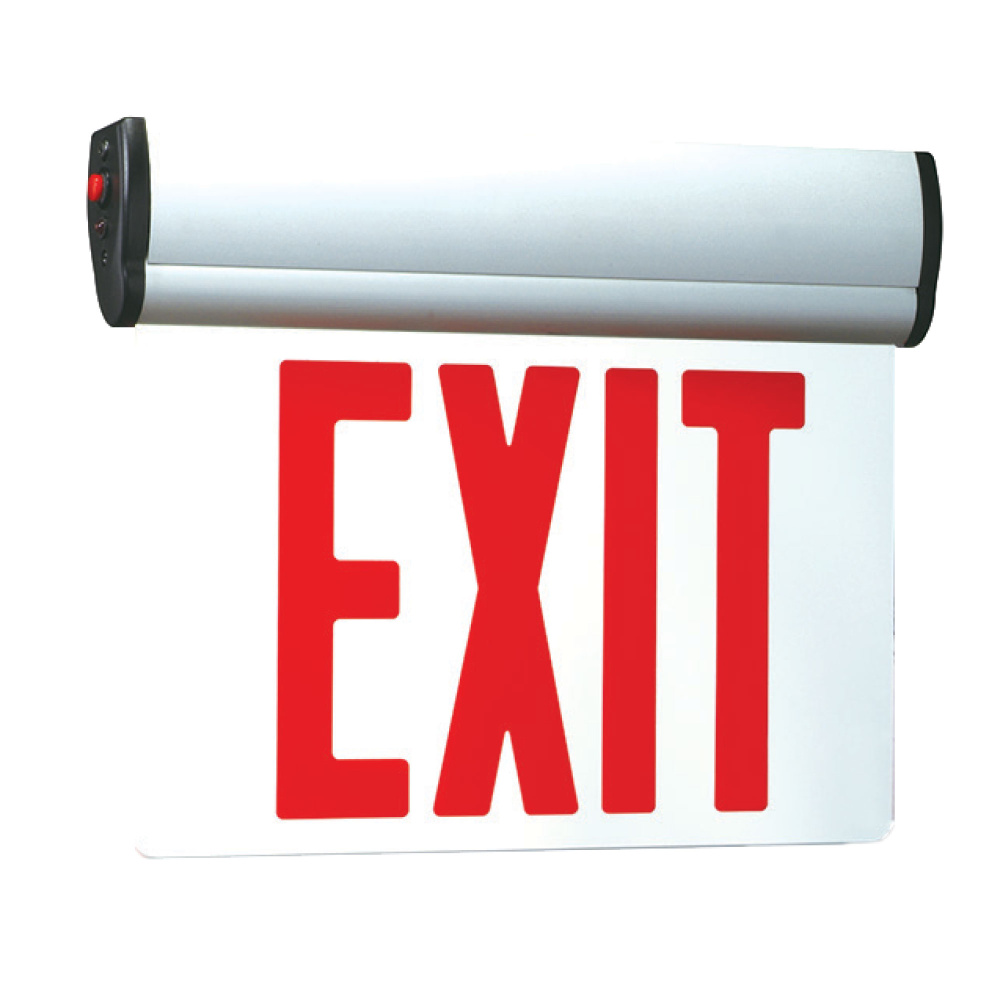

Franklin 13" Red LED Double Face Edge-Lit Exit Sign with White Housing
Image may not reflect selected features
Franklin 13" Red LED Double Face Edge-Lit Exit Sign with White Housing (RXL18RW-SD) by RP Lighting Plus Fans
Designed for both reliability and elegance, the Franklin Self Diagnostic LED Emergency Light combines cutting-edge technology with timeless style. With a high-impact, flame-retardant thermoplastic faceplate and a double-mirrored finish, it offers both durability and aesthetic appeal. Its sleek, low-profile, edge-lit design doesn’t just fit in; it enhances the surroundings, casting a brilliant, dependable light where you need it most. The Franklin operates on 120/277V with a 3.6V Ni-cd rechargeable battery and is energy-efficient, consuming less than 5 watts while providing up to 25 years of reliable LED illumination. The Franklin continuously monitors battery disconnection, charger failure, lamp failure, and transformer faults every 5 seconds, ensuring optimal performance without drawing power, and automatically disconnects from low voltage to protect the battery, ensuring longevity. Includes one-minute self-test monthly, 30-minute semi-annual test, and 90-minute annual test with dual-color LED lamp that clearly displays the status of the lamp, battery, and charger.
Product Specification
Item #
RXL18RW-SD
Dimensions
Height: 9.63"
Width: 13.00"
Length: 3.50"
Additional product details
Vendor Item #
RXL18RW-SD
Internal #
YV3P05VJ5Q
Category
Utility
Subcategory
Exit Signs
Finish
Combination Finishes , White , Clear
Option
Dry Rated
Finish
White, Clear
Voltage
120 V, 277 V
Number of Bulbs
1 Bulbs
Bulb Type
LED
Material
Thermoplastic, Acrylic
Order Minimum
1
Ship Carton Height
2.76
Ship Carton Length
12.6
Ship Carton Width
8.46
Ship Weight
3.37
Sold By
Each
Vendor Ship Method
UPS, FedEx
Weight
2.87
Bulb Included
Yes
Cartons Per Unit
1
Location Rating
Dry Rated
Max Wattage
3.14 W
Safety Rating
ETL Approved
Manufactured By
RP Lighting Plus Fans


Other Details:
  • 122° Maximum Temperature
  • Constructed of Thermoplastic, Acrylic
  • Damp Listed
